| Place of Origin: | China |
| Brand Name: | HY |
| Certification: | CE ISO |
| Model Number: | 20211222007 |
| Minimum Order Quantity: | 5T |
|---|---|
| Price: | $2,560.00/tons 1-14 tons |
| Packaging Details: | Standard seaworthy export packing |
| Delivery Time: | 5-8work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Ton/Tons per Month |
| Standard: | Straight Equal Stainless Steel Angle | Grade: | 304, 316, 316L, 201 |
|---|---|---|---|
| Type: | Equal | Processing Service: | Bending, Welding, Decoiling, Punching, Cutting |
| Steel Grade: | 301L, 301, 310S, 316Ti, 316L, 316, 321, 314, 309S, 304, 304L | Surface Finish: | Annealed & Pickled |
| Delivery Time: | Within 1 Month | Shape: | Equal Angle Bar |
| Technique: | Cold Rolled | Surface: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
| Material Mill: | Posco | Payment Terms: | 30%T/T Advance + 70% Balance |
| High Light: | Inox Stainless Steel Angle Bar,Polished Stainless Steel Angle Bar,inox ss 304 |
||

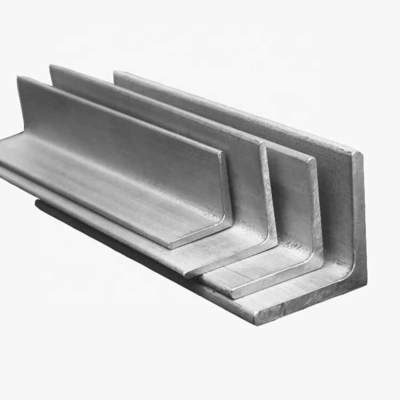

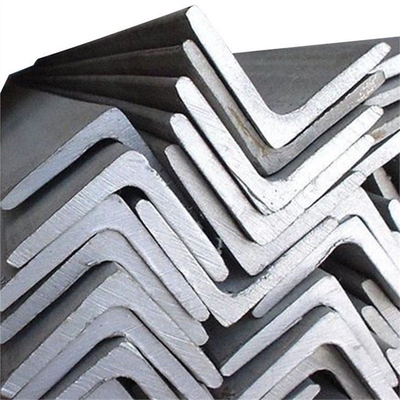

ATSM JIS SS inox 201 202 304 316 stainless steel angle bar polished straight Equal stainless steel angle
Angle steel specifications
GB/T2101-2008 (General provisions for acceptance, packaging, marking and quality certificate of section steel);
GB/T706-2008 (replaces GB/T9787-88 GB/T9788-88) (hot-rolled equilateral/unequal-sided angle steel dimensions, shape, weight and allowable deviation);
JISG3192-94 (shape, size, weight and tolerance of hot-rolled steel);
DIN17100-80 (general structural steel quality standard);
ГОСТ535-88 (technical conditions for ordinary carbon steel).

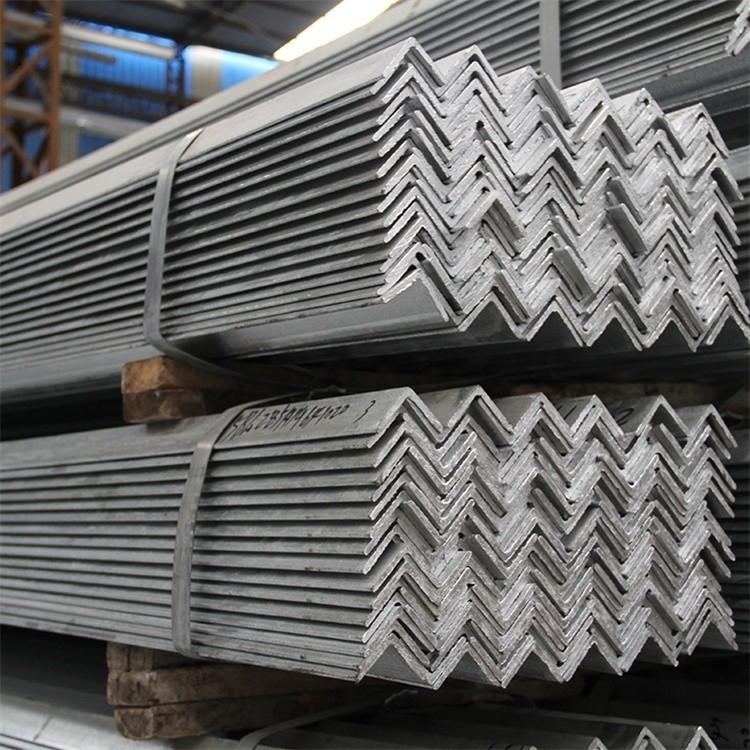

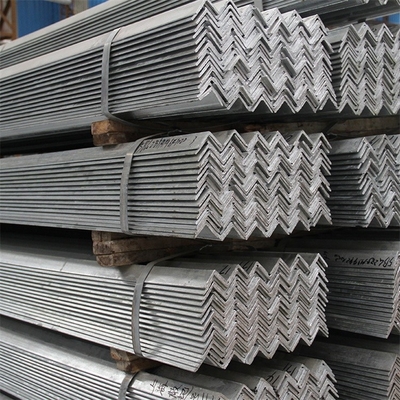

According to the provisions of the above standards, angle steel should be delivered in bundles, and its bundling passes and bundle length should meet the requirements. Angle steel is generally delivered naked, and it is necessary to pay attention to moisture-proof during transportation and storage.
Products Description
|
Item Name |
Stainless Steel Angle Bar |
|
|
Standard |
AISI,ASTM,BS,DIN,GB,JIS, etc |
|
|
Material |
A36,s235jr,S275jr,S355jr,st37-2,SS400,Q235,Q345, etc... |
|
|
Thickness |
3mm - 24mm |
|
|
Equal Angle |
Type: |
2#-20# |
|
Size: |
20-200MM |
|
|
Thickness |
3.0-24MM |
|
|
Weight |
0.597-71.168kg/M |
|
|
Unequal Angle |
Type |
2.5*1.6-20*12.5# |
|
Size |
25*16-200*125mm |
|
|
Long side |
20-200mm |
|
|
Short side |
|
|
|
Thickness |
3- 24mm |
|
|
Weight |
1.687-43.588kg/m |
|
|
Length |
1-12m or as customer request |
|
|
Surface |
Oil,Black, Galvanized, Painted |
|
|
Technique |
Hot rolled/Cold rolled/Galvnized |
|
|
Name |
Stainless Steel Channel |
|
Material |
201, 202, 301, 302, 304, 304L, 310S, 316, 316L, 321, 430, 430A, 309S, 2205, 2507, 2520, 430 , 410, 440, 904Lect, Or Customized |
|
Surface |
BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed |
|
Thinckness |
0.3mm-60mm |
|
Widthness |
50mm~2000mm or customized |
|
Length |
1000mm~8000mm or customized |
|
Certifications |
ISO 9001 BV SGS |
|
Packing |
Industry standard packaging or according to client's requirement |
|
Brand |
TISCO,ZPSS,Baosteel,POSCO,LISCO,YUSCO,Ansteel, QPSS,JISCO,HXSCO, |
|
Payment terms |
30%T/T in advance, the balance against the B/L copy |
|
Delivery time |
Fast delievery in 7 days,up to order quantity |
